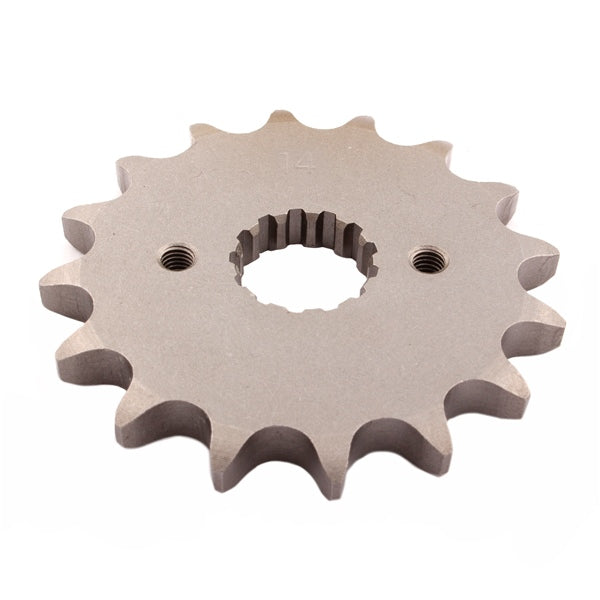

Drive Sprocket

$$How to read the sprocket Charts?

1. Select desired model from the application chart referring to the Make, Model, Year column.
2. Stock size gearing of desired model is listed in column OEM Gearing.
3. All sprockets listed between top and bottom division lines fit selected model. Simply choose preferred ratio from selection guide column and than choose desired R.O.C. sprocket from the appropriate column to the right.

Additional Information:

$$ Gearing selection can affect acceleration, top speed and even handiling.
By changine front and rear sprockets you can alter your bike’s or your ATV's final drive ratio, which in part determines when speed for a given rpm. Gearing ratio refers to the ratio of the rear to front sprockets. For example, a stock Suzuki GSXR600 has a 16 tooth front sprocket, and a 45 tooth rear, for a ratio of 45/16, or 2.81. Substituting a larger front or smaller rear sprocket lowers the ratio (sometimes called “taller” gearing), resulting in more speed for a given engine rpm. Likewise, a smalle front or larger rear sprocket gives less speed for a given rpm (“shorter” gearing).

Performance numbers can be enhanced by sprocket selection to a certain extent, but the overriding factor is your engine’s power and its characteristics. Choosing the correct gearing optimizes your powerband usage, maximizing power delivered to your rear wheel for the given conditions.

$$Speed for a given set of sprockets is determined as follows:
Speed = (rpm X rear tire circumference X front sprocket) / (primary gear ratio X sixth gear ratio X rear sprocket X 1056)
Stock bikes are generally geared to reach their top speeds at just below their peaks in top gear. Changind to something like 44/17 on GSXR600 woud actually reduce top speed, because in sixth gear the engine wouls spin munch slower and not make enough power to pull its top speed. Shortening the gearing to sy 46/15 would have the GSXR600 passing its power peak early, also resulting in a slower top speed. However, this is where sprocket selection can be advantageous: at a given road speed, and in a given gear, shorter gearing will have the motor spinning faster, where more power is available.

A popular modification is to replace a stock machine’s 530 or 525 chain with a thinner and lignter 520 series chain and matching sprockets.$$

Fits:

• KAWASAKI ZX600 Ninja 600R (1987)
• KAWASAKI ZX750F Ninja 750R (1987)
• KAWASAKI ZX600 Ninja 600R (1988)
• KAWASAKI ZX750F Ninja 750R (1988)
• KAWASAKI ZX600 Ninja 600R (1989)
• KAWASAKI ZX750 Ninja ZX-7 (1989)
• KAWASAKI ZX600 Ninja ZX-6 (1990)
• KAWASAKI ZX750 Ninja ZX-7 (1990)
• KAWASAKI ZX600 Ninja ZX-6 (1991)
• KAWASAKI ZX750 Ninja ZX-7 (1991)
• KAWASAKI ZX750 Ninja ZX-7R (1991)
• KAWASAKI ZX600 Ninja ZX-6 (1992)
• KAWASAKI ZX750 Ninja ZX-7 (1992)
• KAWASAKI ZX750 Ninja ZX-7R (1992)
• KAWASAKI ZX600 Ninja ZX-6 (1993)
• KAWASAKI ZX750 Ninja ZX-7 (1993)
• KAWASAKI ZX750 Ninja ZX-7R (1993)
• KAWASAKI ZX600 Ninja 600R (1994)
• KAWASAKI ZX750 Ninja ZX-7 (1994)
• KAWASAKI ZX900 Ninja ZX-9 (1994)
• KAWASAKI ZX600 Ninja 600R (1995)
• KAWASAKI ZX750 Ninja ZX-7 (1995)
• KAWASAKI ZX900 Ninja ZX-9 (1995)
• KAWASAKI VN800A Vulcan 800 Custom (1995)
• KAWASAKI ZX600 Ninja 600R (1996)
• KAWASAKI ZX900 Ninja ZX-9 (1996)
• KAWASAKI VN800B Vulcan 800 Classic (1996)
• KAWASAKI VN800A Vulcan 800 Custom (1996)
• KAWASAKI ZX900 Ninja ZX-9 (1997)
• KAWASAKI VN800B Vulcan 800 Classic (1997)
• KAWASAKI VN800A Vulcan 800 Custom (1997)
• KAWASAKI ZX900 Ninja ZX-9 (1998)
• KAWASAKI VN800B Vulcan 800 Classic (1998)
• KAWASAKI VN800A Vulcan 800 Custom (1998)
• KAWASAKI ZX900 Ninja ZX-9 (1999)
• KAWASAKI VN800B Vulcan 800 Classic (1999)
• KAWASAKI VN800A Vulcan 800 Custom (1999)
• KAWASAKI VN800E Vulcan 800 Drifter (1999)
• KAWASAKI ZX600 Ninja ZX-6 (2000)
• KAWASAKI ZX900 Ninja ZX-9 (2000)
• KAWASAKI VN800B Vulcan 800 Classic (2000)
• KAWASAKI VN800E Vulcan 800 Drifter (2000)
• KAWASAKI ZX600 Ninja ZX-6 (2001)
• KAWASAKI ZX900 Ninja ZX-9 (2001)
• KAWASAKI VN800B Vulcan 800 Classic (2001)
• KAWASAKI VN800E Vulcan 800 Drifter (2001)
• KAWASAKI ZX600 Ninja ZX-6 (2002)
• KAWASAKI VN800B Vulcan 800 Classic (2002)
• KAWASAKI VN800E Vulcan 800 Drifter (2002)
• KAWASAKI VN800B Vulcan 800 Classic (2003)
• KAWASAKI VN800E Vulcan 800 Drifter (2003)
• KAWASAKI VN800B Vulcan 800 Classic (2004)
• KAWASAKI VN800B Vulcan 800 Classic (2005)
• KAWASAKI VN800B Vulcan 800 Classic (2006)
• SUZUKI GSX-R1100 (1987)
• SUZUKI GSX-R750 (1987)
• SUZUKI Katana 1100 (1988)
• SUZUKI Katana 600 (1988)
• SUZUKI GSX-R1100 (1988)
• SUZUKI GSX-R750 (1988)
• SUZUKI Katana 600 (1989)
• SUZUKI Katana 750 (1989)
• SUZUKI GSX-R1100 (1989)
• SUZUKI GSX-R750 (1989)
• SUZUKI Katana 600 (1990)
• SUZUKI Katana 750 (1990)
• SUZUKI GSX-R1100 (1990)
• SUZUKI GSX-R750 (1990)
• SUZUKI Katana 600 (1991)
• SUZUKI Katana 750 (1991)
• SUZUKI GSX-R1100 (1991)
• SUZUKI GSX-R750 (1991)
• SUZUKI Katana 600 (1992)
• SUZUKI Katana 750 (1992)
• SUZUKI GSX-R1100 (1992)
• SUZUKI GSX-R750 (1992)
• SUZUKI Katana 600 (1993)
• SUZUKI Katana 750 (1993)
• SUZUKI GSX-R1100 (1993)
• SUZUKI GSX-R750 (1993)
• SUZUKI GSX-R1100 (1994)
• SUZUKI GSX-R750 (1994)
• SUZUKI Katana 600 (1994)
• SUZUKI Katana 750 (1994)
• SUZUKI RF900 (1994)
• SUZUKI GSX-R1100 (1995)
• SUZUKI GSX-R750 (1995)
• SUZUKI Katana 600 (1995)
• SUZUKI Katana 750 (1995)
• SUZUKI RF900 (1995)
• SUZUKI Bandit 600 (1996)
• SUZUKI GSX-R1100 (1996)
• SUZUKI GSX-R750 (1996)
• SUZUKI Katana 600 (1996)
• SUZUKI Katana 750 (1996)
• SUZUKI RF900 (1996)
• SUZUKI Bandit 1200 (1997)
• SUZUKI Bandit 600 (1997)
• SUZUKI Bandit 1200 ABS (1997)
• SUZUKI GSX-R1100 (1997)
• SUZUKI GSX-R750 (1997)
• SUZUKI Katana 600 (1997)
• SUZUKI Katana 750 (1997)
• SUZUKI Marauder 800 VZ800 (1997)
• SUZUKI RF900 (1997)
• SUZUKI TL1000S (1997)
• SUZUKI Bandit 1200 (1998)
• SUZUKI GSX-R1100 (1998)
• SUZUKI Katana 600 (1998)
• SUZUKI Katana 750 (1998)
• SUZUKI Marauder 800 VZ800 (1998)
• SUZUKI TL1000R (1998)
• SUZUKI TL1000S (1998)
• SUZUKI Bandit 1200 (1999)
• SUZUKI GSX1300R Hayabusa (1999)
• SUZUKI Katana 600 (1999)
• SUZUKI Katana 750 (1999)
• SUZUKI Marauder 800 VZ800 (1999)
• SUZUKI TL1000R (1999)
• SUZUKI TL1000S (1999)
• SUZUKI Bandit 1200 (2000)
• SUZUKI Bandit 600 (2000)
• SUZUKI GSX1300R Hayabusa (2000)
• SUZUKI Katana 600 (2000)
• SUZUKI Katana 750 (2000)
• SUZUKI Marauder 800 VZ800 (2000)
• SUZUKI TL1000R (2000)
• SUZUKI TL1000S (2000)
• SUZUKI Bandit 1200 (2001)
• SUZUKI Bandit 600 (2001)
• SUZUKI GSX1300R Hayabusa (2001)
• SUZUKI GSX-R1000 (2001)
• SUZUKI Katana 600 (2001)
• SUZUKI Katana 750 (2001)
• SUZUKI Marauder 800 VZ800 (2001)
• SUZUKI TL1000R (2001)
• SUZUKI TL1000S (2001)
• SUZUKI Bandit 1200 (2002)
• SUZUKI Bandit 600 (2002)
• SUZUKI GSX1300R Hayabusa (2002)
• SUZUKI GSX-R1000 (2002)
• SUZUKI Katana 600 (2002)
• SUZUKI Katana 750 (2002)
• SUZUKI Marauder 800 VZ800 (2002)
• SUZUKI TL1000R (2002)
• SUZUKI Bandit 1200 (2003)
• SUZUKI Bandit 600 (2003)
• SUZUKI GSX1300R Hayabusa (2003)
• SUZUKI GSX-R1000 (2003)
• SUZUKI Katana 600 (2003)
• SUZUKI Katana 750 (2003)
• SUZUKI Marauder 800 VZ800 (2003)
• SUZUKI SV1000S (2003)
• SUZUKI Bandit 1200 (2004)
• SUZUKI GSX1300R Hayabusa (2004)
• SUZUKI GSX-R1000 (2004)
• SUZUKI Katana 750 (2004)
• SUZUKI Marauder 800 VZ800 (2004)
• SUZUKI SV1000S (2004)
• SUZUKI Bandit 1200 (2005)
• SUZUKI GSX1300R Hayabusa LTD (2005)
• SUZUKI GSX-R1000 (2005)
• SUZUKI Katana 750 (2005)
• SUZUKI SV1000S (2005)
• SUZUKI Bandit 1200 (2006)
• SUZUKI Bandit 1200 ABS (2006)
• SUZUKI GSX1300R Hayabusa LTD (2006)
• SUZUKI GSX-R1000 (2006)
• SUZUKI Katana 750 (2006)
• SUZUKI SV1000S (2006)
• SUZUKI Bandit 1250 (2007)
• SUZUKI Bandit 1250 ABS (2007)
• SUZUKI GSX1300R Hayabusa LTD (2007)
• SUZUKI GSX-R1000 (2007)
• SUZUKI SV1000S (2007)
• SUZUKI Bandit 1250 ABS (2008)
• SUZUKI Bandit 1250 SE ABS (2008)
• SUZUKI GSX-R1000 (2008)
• SUZUKI Bandit 1250 ABS (2009)
• SUZUKI Bandit 1250 SE ABS (2009)
• YAMAHA FZR600 (1989)
• YAMAHA FZR600 (1990)
• YAMAHA FZR600 (1991)
• YAMAHA FZR600 (1992)
• YAMAHA FZR600 (1993)
• YAMAHA FZR600 (1994)
• YAMAHA FZR600 (1995)
• YAMAHA YZF 600R (1995)
• YAMAHA YZF 600R (1996)
• YAMAHA YZF 600R (1997)
• YAMAHA YZF 600R (1998)
• YAMAHA YZF 600R (1999)
• YAMAHA YZF 600R (2000)
• YAMAHA YZF 600R (2001)
• YAMAHA YZF 600R (2002)
• YAMAHA YZF 600R (2003)
• YAMAHA YZF 600R (2004)
• YAMAHA YZF 600R (2005)
• YAMAHA YZF 600R (2006)
• YAMAHA YZF 600R (2007)
• KAWASAKI KZ750B Twin (1977)
• KAWASAKI KZ650C Custom (1977)
• KAWASAKI KZ650B (1977)
• KAWASAKI KZ750B Twin (1978)
• KAWASAKI KZ650C Custom (1978)
• KAWASAKI KZ650B (1978)
• KAWASAKI KZ750B Twin (1979)
• KAWASAKI KZ650C Custom (1979)
• KAWASAKI KZ650B (1979)
• KAWASAKI KZ750E (1980)
• KAWASAKI KZ550C LTD (1980)
• KAWASAKI KZ550A (1980)
• KAWASAKI KZ750E (1981)
• KAWASAKI KZ550C LTD (1981)
• KAWASAKI KZ550A (1981)
• KAWASAKI KZ305 CSR (1981)
• KAWASAKI KZ750E SS (1982)
• KAWASAKI KZ550C LTD (1982)
• KAWASAKI KZ550A SS (1982)
• KAWASAKI KZ550A SS (1983)
• KAWASAKI ZX600 Ninja 600R (1985)
• KAWASAKI ZX600 Ninja 600R (1986)
• SUZUKI GS750 (1977)
• SUZUKI GS550 (1977)
• SUZUKI GS400 (1977)
• SUZUKI GS1000E (1978)
• SUZUKI GS1000 (1978)
• SUZUKI GS750E (1978)
• SUZUKI GS750 (1978)
• SUZUKI GS550E (1978)
• SUZUKI GS550 (1978)
• SUZUKI GS400 (1978)
• SUZUKI GS1000L (1979)
• SUZUKI GS1000S (1979)
• SUZUKI GS1000E (1979)
• SUZUKI GS1000 (1979)
• SUZUKI GS750L (1979)
• SUZUKI GS750E (1979)
• SUZUKI GS750 (1979)
• SUZUKI GS550E (1979)
• SUZUKI GS550 (1979)
• SUZUKI GS425 (1979)
• SUZUKI GS1000S (1980)
• SUZUKI GS1000E (1980)
• SUZUKI GS1000GL (1980)
• SUZUKI GS1000G (1980)
• SUZUKI GS750E (1980)
• SUZUKI GS550E (1980)
• SUZUKI GS1000GL (1981)
• SUZUKI GS1000G (1981)
• SUZUKI GS750E (1981)
• SUZUKI GS650E (1981)
• SUZUKI GS750E (1982)
• SUZUKI GS650E (1982)
• SUZUKI GS750E (1983)
• SUZUKI GS750ES (1983)
• SUZUKI XN85 Turbo (1983)
• SUZUKI GSX-R1100 (1986)
• SUZUKI GSX-R750R SE (1986)
• SUZUKI GSX-R750 (1986)
• SUZUKI RG500 Gamma (1986)
• YAMAHA XS500 (1977)
• YAMAHA SR500 (1978)
• YAMAHA XS500 (1978)
• YAMAHA SR500 (1979)
• KAWASAKI ZX750F Ninja 750R (1989)
• KAWASAKI ZX600 Ninja 600R (1990)
• KAWASAKI ZX750F Ninja 750R (1990)
• KAWASAKI ZX600 Ninja 600R (1991)
