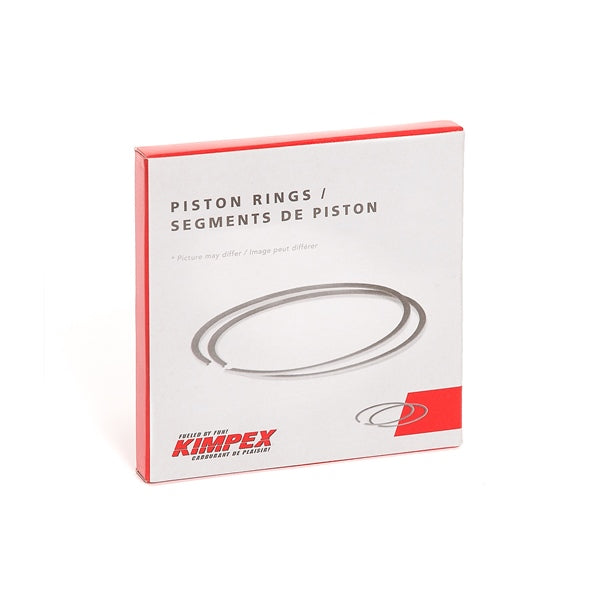

Piston Replacement Ring Set

$35.09
Piston and Ring Installation:
  • Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
  • Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
  • Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
  • Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
  • Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
  • Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.


Fits:
  • POLARIS Trail Blazer 250 2X4 (1990)
  • POLARIS Trail Blazer 250 2X4 (1991)
  • POLARIS Trail Blazer 250 2X4 (1992)
  • POLARIS Trail Blazer 250 2X4 (1993)
  • POLARIS Trail Blazer 250 2X4 (2004)
  • POLARIS Trail Blazer 250 2X4 (2005)
  • POLARIS Trail Blazer 250 2X4 (2006)
  • POLARIS Trail Blazer 250 2X4 (2000)
  • POLARIS Trail Blazer 250 2X4 (2001)
  • POLARIS Trail Blazer 250 2X4 (2002)
  • POLARIS Trail Blazer 250 2X4 (2003)
  • POLARIS Trail Blazer 250 2X4 (1994)
  • POLARIS Trail Blazer 250 2X4 (1995)
  • POLARIS Trail Blazer 250 2X4 (1998)
  • POLARIS Trail Blazer 250 2X4 (1999)
  • POLARIS Trail Blazer 250 2x4 ES (1997)
  • POLARIS Trail Blazer 250 2x4 ES (1996)
  • POLARIS Trail Boss 250 2X4 (1988)
  • POLARIS Trail Boss 250 2X4 (1994)
  • POLARIS Trail Boss 250 2X4 (1995)
  • POLARIS Trail Boss 250 2X4 (1996)
  • POLARIS Trail Boss 250 2X4 (1998)
  • POLARIS Trail Boss 250 2X4 (1999)
  • POLARIS Trail Boss 250 2X4 (1997)
  • POLARIS Trail Boss 250 2X4 Dual range (1989)
  • POLARIS Trail Boss 250 2X4 Dual range (1990)
  • POLARIS Trail Boss 250 2X4 Dual range (1991)
  • POLARIS Trail Boss 250 2X4 Dual range (1992)
  • POLARIS Trail Boss 250 2X4 Dual range (1993)
  • POLARIS Trail Boss 250 4X4 (1987)
  • POLARIS Trail Boss 250 4X4 (1988)
  • POLARIS Trail Boss 250 4X4 (1989)
  • POLARIS Trail Boss 250 4X4 (1990)
  • POLARIS Trail Boss 250 4X4 (1991)
  • POLARIS Trail Boss 250 4X4 (1992)
  • POLARIS Trail Boss 250 4X4 (1993)
  • POLARIS Xplorer 250 4X4 2 stroke (2000)
  • POLARIS Xplorer 250 4X4 2 stroke (2001)
  • POLARIS Xplorer 250 4X4 2 stroke (2002)
  • POLARIS Scrambler 250 2x4 (1985)
  • POLARIS Trail Boss 250R ES 4x4 (1985)
  • POLARIS Scrambler 250 2x4 (1986)
  • POLARIS Trail Boss 250R ES 4x4 (1986)
  • POLARIS Trail Boss 325 2x4 (1999)
  • POLARIS Xplorer 300 4X4 (2000)
  • POLARIS 500 SP (1989)
  • POLARIS 500 SP (1992)
  • POLARIS Indy Wide Trak 156" (1993)
  • POLARIS 500 SKS (1995)
  • POLARIS WideTrak LX (2012)
  • POLARIS WideTrak LX (2013)
  • POLARIS WideTrak LX (2014)
  • POLARIS WideTrak LX (2015)
  • POLARIS Indy 500 L/C 121" (2005)
  • POLARIS Indy 500 L/C 121" (2006)
  • POLARIS Indy 500 L/C 121" (2001)
  • POLARIS Indy 500 L/C 121" (2002)
  • POLARIS 500 Classic Edge ES/R L/C 121" (2004)
  • POLARIS 500 Classic Edge ES/R L/C 121" (2005)
  • POLARIS 500 Classic Edge ES/R L/C 121" (2006)
  • POLARIS Indy 500 Classic ES/R L/C 121" (1994)
  • POLARIS Indy 500 Classic ES/R L/C 121" (1995)
  • POLARIS Indy 500 Classic ES/R L/C 121" (1996)
  • POLARIS Indy 500 Classic ES/R L/C 121" (1997)
  • POLARIS Indy 500 Classic ES/R L/C 121" (2001)
  • POLARIS Indy 500 Classic ES/R L/C 121" (2000)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133,5" (1994)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133,5" (1996)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133,5" (1997)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133,5" (1999)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133,5" (2001)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133,5" (2000)
  • POLARIS Indy 500 EFI L/C 121" (1994)
  • POLARIS Indy 500 EFI L/C 121" (1995)
  • POLARIS Indy 500 EFI L/C 121" (1996)
  • POLARIS Indy 500 EFI L/C 121" (1997)
  • POLARIS Indy 500 RMK EFI L/C 133,5" (1996)
  • POLARIS Indy 500 SKS EFI L/C 133,5" (1994)
  • POLARIS Indy 500 SKS EFI L/C 133,5" (1995)
  • POLARIS Indy 500 SKS EFI L/C 133,5" (1996)
  • POLARIS Indy 500 RMK L/C 133,5" (1998)
  • POLARIS Indy 500 RMK L/C 133,5" (1996)
  • POLARIS Indy 500 RMK L/C 133,5" (1997)
  • POLARIS Indy 500 SKS L/C 133,5" (1996)
  • POLARIS Indy 500 SKS L/C 133,5" (1997)
  • POLARIS Indy 500 L/C 121" (1997)
  • POLARIS Indy 500 L/C 121" (1999)
  • POLARIS Indy 500 L/C 121" (1995)
  • POLARIS Indy 500 L/C 121" (1996)
  • POLARIS Indy 500 Edge L/C 121" (2002)
  • POLARIS Indy 500 Edge L/C 121" (2003)
  • POLARIS Indy 500 Edge 121" (2004)
  • POLARIS Indy 500 Edge L/C 121" (2005)
  • POLARIS Indy 500 Edge L/C 121" (2001)
  • POLARIS Indy 500 Classic Edge ES/R L/C 121" (2002)
  • POLARIS Indy 500 Classic Deluxe 133,5" (1992)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133,5" (2002)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133" (2003)
  • POLARIS Indy 500 EFI L/C 121" (1993)
  • POLARIS Indy 500 SKS EFI L/C 133,5" (1993)
  • POLARIS Indy Wide Trak LX ES/R L/C 156" (2002)
  • POLARIS Indy Wide Trak LX ES/R L/C 156" (2003)
  • POLARIS Indy Wide Trak LX 156" (1998)
  • POLARIS Wide Trak LX 500 ES/R L/C 156" (2004)
  • POLARIS Wide Trak LX 500 ES/R L/C 156" (2005)
  • POLARIS Wide Trak LX 500 ES/R L/C 156" (2006)
  • POLARIS Wide Trak LX 500 ES/R L/C 156" (2007)
  • POLARIS Wide Trak LX 500 ES/R L/C 156" (2008)
  • POLARIS Wide Trak LX 500 ES/R L/C 156" (2009)
  • POLARIS 500 WideTrak LX L/C 156" (2010)
  • POLARIS 500 WideTrak LX L/C 156" (2011)
  • POLARIS Indy 500 Classic ES/R L/C 121" (1999)
  • POLARIS Indy 500 L/C 121" (2000)
  • POLARIS Indy 500 Edge L/C 121" (2006)
  • POLARIS Indy 500 RMK L/C 133,5" (1999)
  • POLARIS Indy 500 Classic L/C 121" (1989)
  • POLARIS Indy 500 Classic L/C 121" (1990)
  • POLARIS Indy 500 Classic L/C 121" (1991)
  • POLARIS Indy 500 Classic L/C 121" (1993)
  • POLARIS Indy 500 Classic L/C 121" (1998)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133,5" (1993)
  • POLARIS Indy 500 Classic Touring ES/R L/C 133,5" (1998)
  • POLARIS Indy 500 L/C 121" (1989)
  • POLARIS Indy 500 L/C 121" (1990)
  • POLARIS Indy 500 L/C 121" (1991)
  • POLARIS Indy 500 Carb L/C 121" (1992)
  • POLARIS Indy 500 L/C 121" (1998)
  • POLARIS Indy 500 SPX EFI L/C (1992)
  • POLARIS Indy 500 SKS EFI L/C 133,5" (1992)
  • POLARIS Indy 500 SKS L/C 133,5" (1989)
  • POLARIS Indy 500 SKS L/C 133" (1990)
  • POLARIS Indy 500 SKS L/C 133,5" (1991)
  • POLARIS Indy 500 Special EFI L/C 121" (1992)
  • POLARIS Indy 500 Special L/C 121" (1990)
  • POLARIS Indy 500 Special L/C 121" (1991)
  • POLARIS Indy 650 L/C 121" (1989)
  • POLARIS Indy 650 SKS L/C 133,5" (1989)
  • POLARIS Indy Storm 800 L/C 121" (1994)
  • POLARIS Indy Storm 800 L/C 121" (1995)
  • POLARIS Indy Storm 800 SKS L/C 133,5" (1994)
  • POLARIS Indy Storm 800 SKS L/C 133,5" (1995)
  • POLARIS Indy Trail Wide Trak 488 F/C 156" (1990)
  • POLARIS Indy Wide Trak 156" (1991)
  • POLARIS Indy Wide Trak 156" (1992)
  • POLARIS Indy Wide Trak LX 156" (1994)
  • POLARIS Indy Wide Trak LX 156" (1995)
  • POLARIS Indy Wide Trak LX 156" (1996)
  • POLARIS Indy Wide Trak LX 156" (1997)
  • POLARIS Indy Wide Trak LX ES/R L/C 156" (2000)
  • POLARIS Indy Wide Trak LX 156" (2001)
  • POLARIS Big Boss 250 4X6 (1989)
  • POLARIS Big Boss 250 4X6 (1990)
  • POLARIS Big Boss 250 4X6 (1991)
  • POLARIS Big Boss 250 4X6 (1992)
  • POLARIS Big Boss 250 6X6 (1991)
  • POLARIS Big Boss 250 6X6 (1992)
  • POLARIS Big Boss 250 6X6 (1993)
  • POLARIS Cyclone 250X (1987)
  • POLARIS Sport 400L 2X4 (1997)
  • POLARIS Sport 400L 2X4 (1996)
