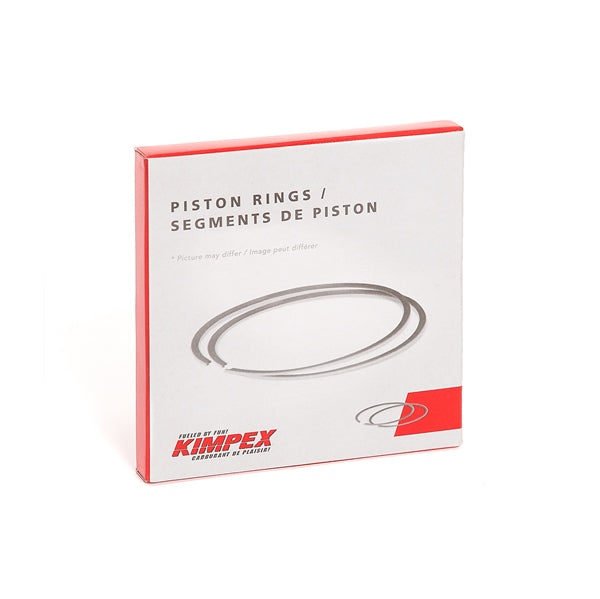

Piston Replacement Ring Set

$32.39
Piston and Ring Installation:
  • Remember never install chrome rings in chrome plated, nikasil or electrofusion cylinders.
  • Prior to installation, fit each ring into the cylinder bore and measure the end gap to eliminate the chance of ring butting. Acceptable gap range is .010 to .025. If gap is inadequate, carefully file to the recommended specs. See “Piston Clearance Guide”. Clean and lubricate all moving parts with 10W30 oil.
  • Install pistons with the arrow pointing to the exhaust side of the engine (except for few models Polaris where the arrow points toward the magneto side).
  • Install circlips carefully without forcing, bending or turning them. Be sure they seat properly in the grooves and position the openings down.
  • Install rings onto matching pistons. Lubricate and check to be sure the end gaps can be completely closed around the locating pins.
  • Install new base gaskets, compress rings and carefully slide the cylinders down into position. Before installing the cylinder heads, rotate the crankshaft by hand to make sure pistons and rings move freely into cylinder.


Fits:
  • POLARIS Indy 700 RMK L/C 144" (2001)
  • POLARIS 700 RMK Edge R L/C 144" (2004)
  • POLARIS 700 RMK Edge R L/C 144" (2005)
  • POLARIS 700 RMK Edge R L/C 151" (2004)
  • POLARIS 700 RMK Edge R L/C 151" (2005)
  • POLARIS 700 SKS L/C 136" (1997)
  • POLARIS 700 Switchback R L/C 144" (2004)
  • POLARIS Indy 700 XC L/C 121" (1998)
  • POLARIS 700 XC Edge R L/C 121" (2004)
  • POLARIS 700 XC Special Edge R L/C 121" (2005)
  • POLARIS Indy 700 XC Special Edge L/C 121" (2001)
  • POLARIS 700 XC Special Luxury Pakage Edge ES/R 121" (2005)
  • POLARIS 800 Switchback R L/C 144" (2004)
  • POLARIS 800 XC Edge R L/C 121" (2004)
  • POLARIS 800 XC Special Edge R L/C 121" (2005)
  • POLARIS 800 XC Special Luxury Pkg Edge ES/R 121" (2005)
  • POLARIS 700 RMK Dragon IQ R L/C 155" (2007)
  • POLARIS Indy 700 Classic Edge ES/R L/C 121" (2002)
  • POLARIS Indy 700 Classic Edge ES/R L/C 121" (2003)
  • POLARIS Indy 700 Classic Touring Edge ES/R L/C 136" (2003)
  • POLARIS Indy 700 Pro X L/C 121" (2003)
  • POLARIS Indy 700 RMK Edge L/C 136" (2002)
  • POLARIS Indy 700 RMK Edge L/C 144" (2002)
  • POLARIS Indy 700 RMK Edge L/C 144" (2003)
  • POLARIS Indy 700 RMK Edge L/C 151" (2003)
  • POLARIS Indy 700 SKS L/C 136" (2002)
  • POLARIS Indy 700 SKS Edge L/C 144" (2003)
  • POLARIS Indy 700 XC Special Edge L/C 121" (2002)
  • POLARIS Indy 700 XC Special Edge X L/C 121" (2003)
  • POLARIS Indy 600 XC Special L/C 121" (1999)
  • POLARIS 700 Classic Touring Edge ES/R L/C 136" (2004)
  • POLARIS 700 Pro X R L/C 121" (2004)
  • POLARIS 700 Pro X2 R L/C 121" (2004)
  • POLARIS 700 RMK 151" L/C (2002)
  • POLARIS Indy 700 SKS L/C 136" (1999)
  • POLARIS Indy 700 SKS L/C 136" (2000)
  • POLARIS Indy 700 SKS L/C 136" (2001)
  • POLARIS Indy 700 XC Deluxe R L/C 121" (2000)
  • POLARIS 700 XC L/C (1997)
  • POLARIS Indy 700 XC L/C 121" (1999)
  • POLARIS Indy 700 XC Special Edge M-10 L/C (2003)
  • POLARIS Indy 700 XC Special L/C 121" (1999)
  • POLARIS Indy 700 XC Special L/C 121" (2000)
  • POLARIS 700 XC Special Edge M-10 L/C (2005)
  • POLARIS Indy 700 XC Special M-10 L/C (2002)
  • POLARIS 700 XC M-10 L/C (2004)
  • POLARIS 800 Classic Touring Edge ES/R L/C 136" (2004)
  • POLARIS 800 Pro X L/C 121" (2004)
  • POLARIS 800 XC Special Edge M-10 L/C (2005)
  • POLARIS 800 XC M-10 L/C (2004)
  • POLARIS 700 XC Edge (2003)
  • POLARIS 700 XC Edge (2004)
  • POLARIS 700 EV XC SP Edge (2001)
  • POLARIS 600 Switchback R L/C 144" (2004)
  • POLARIS 700 Classic Edge ES/R L/C 121" (2004)
  • POLARIS Indy 700 Classic ES/R L/C 121" (2001)
  • POLARIS Indy 700 RMK L/C 136" (1997)
  • POLARIS Indy 700 RMK L/C 136" (1998)
  • POLARIS Indy 700 RMK L/C 136" (2000)
  • POLARIS Indy 700 RMK L/C 136" (2001)
  • POLARIS Indy 700 RMK L/C 136" (1999)
See full details
