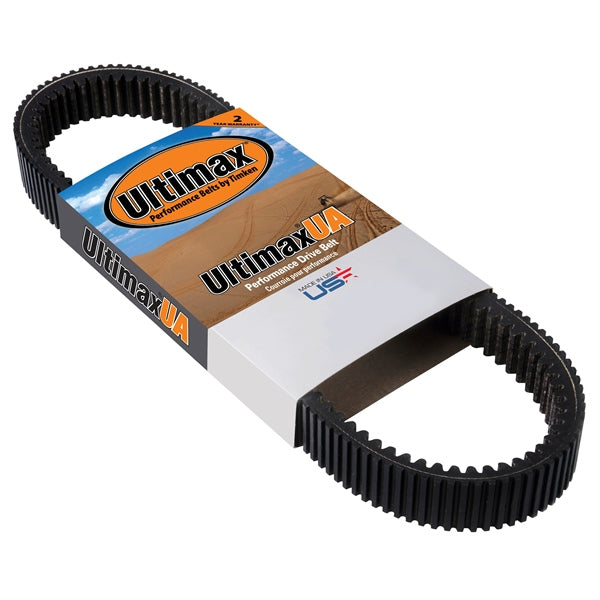

UA Drive Belt

Materials and Manufacturing:

• Fiber-loaded rubber designed to grip the clutches and to stay that way over the life of the belt
• Each belt has rubber compounds that work best for the application
• Every Ultimax belt contains strong and stable aramid cord
• Zero stretch and maximum tensile strength
• Built with modern methods to reduce variability and eliminate most “classic” failure modes

Dimensions:

• Every Ultimax belt is manufactured using processes that reduce dimensional variation so every belt performs consistently
• Dimensions match OE in cord length and width, meaning your ATV, UTV or SxS will shift like new

* Please Note: The belt dimensions provided are for reference only. These dimensions should not be used to determine product functionality. Ultimax belts are built to exacting specifications and inspected with calibrated equipment at specified tensions to assure strict dimensional compliance. Belt dimensions can vary from one manufacturer to another based on proprietary design information.

Refer to the chart to find your model.

Fits:

• ARCTIC CAT 500 4x4 Manual FIS (2009)
• ARCTIC CAT 500 4x4 Manual ACT (2002)
• ARCTIC CAT 500 4x4 Automatic (2000)
• ARCTIC CAT 500 4x4 Automatic (2001)
• ARCTIC CAT 500 4x4 Automatic FIS (2005)
• ARCTIC CAT 500 4x4 Automatic FIS (2006)
• ARCTIC CAT 500 4x4 Automatic FIS (2008)
• ARCTIC CAT 500 4x4 Automatic FIS (2009)
• ARCTIC CAT TBX 500 4x4 Automatic (2006)
• ARCTIC CAT 500 4x4 TBX Automatic (2003)
• ARCTIC CAT TBX 500 4x4 Automatic (2004)
• ARCTIC CAT TRV 500 4x4 Automatic (2006)
• ARCTIC CAT 500 4x4 TBX Automatic (2002)
• ARCTIC CAT TBX 500 4x4 Automatic (2005)
• ARCTIC CAT TRV 500 4x4 Automatic (2008)
• ARCTIC CAT TRV 500 4x4 Automatic (2005)
• ARCTIC CAT TRV 500 4x4 Automatic (2004)
• SUZUKI LT-A500F QuadMaster 4x4 Automatic (2000)
• SUZUKI LT-A500F QuadMaster 4x4 Automatic (2001)
• SUZUKI LT-A500F Vinson 500 4x4 Automatic (2002)
• SUZUKI LT-A500F Vinson 500 4x4 Automatic (2003)
• SUZUKI LT-A500F Vinson 500 4x4 Automatic (2004)
• SUZUKI LT-A500F Vinson 500 4x4 Automatic (2005)
• SUZUKI LT-A500F Vinson 500 4x4 Automatic (2006)
• SUZUKI LT-A500F Vinson 500 4x4 Automatic (2007)
• SUZUKI LT-A500F Vinson LTD (2005)
• SUZUKI LT-A500F Vinson LTD (2006)
• SUZUKI LT-F500F Vinson 500 4x4 (2005)
• SUZUKI LT-F500F Vinson 500 4x4 (2006)
• SUZUKI LT-F500F Vinson 500 4x4 (2007)
• SUZUKI LT-F500F Vinson 500 LTD 4x4 (2007)
• ARCTIC CAT TRV 500 4x4 Automatic (2003)
• ARCTIC CAT 500 4x4 Automatic FIS (2004)
