Universal Joint

$42.91

U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
U Joints are pre greased with hi-temp Lithium Complex 3 grease.
Bearing cups feature a Quad lip seal to keep contamination out and grease in.
Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
Kits include cap plug to eliminate grease zerk for low clearance applications.
Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

Notes for utility Models:

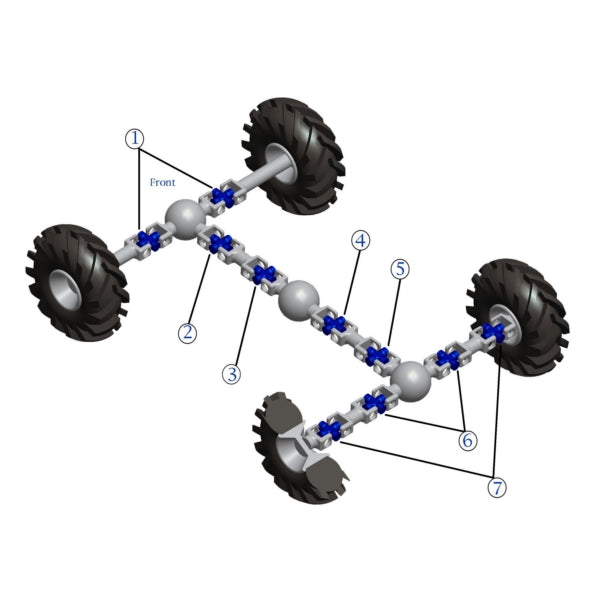

A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)

B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)

C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)

In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.

Fits:

KAWASAKI Mule 610 4x4 (2006)
KAWASAKI Mule 610 4x4 (2007)
KAWASAKI Mule 610 4x4 (2011)
KAWASAKI Mule 610 4x4 (2012)
KAWASAKI Mule 610 4x4 (2009)
KAWASAKI Mule 610 4x4 (2010)
KAWASAKI Mule 610 XC 4x4 (2010)
KAWASAKI Mule 610 XC 4x4 (2011)
KAWASAKI Mule 610 XC 4x4 (2012)
KAWASAKI Mule 3010 4x4 (2006)
KAWASAKI Mule 3010 4x4 (2007)
KAWASAKI Mule 3010 4x4 (2001)
KAWASAKI Mule 3010 4x4 (2002)
KAWASAKI Mule 3010 4x4 (2003)
KAWASAKI Mule 3010 4x4 (2004)
KAWASAKI Mule 3010 4x4 (2005)
KAWASAKI Mule 3010 Trans 4x4 (2006)
KAWASAKI Mule 3010 Trans 4x4 (2007)
KAWASAKI Mule 4010 4x4 (2009)
KAWASAKI Mule 4010 4x4 (2010)
KAWASAKI Mule 4010 4x4 (2011)
KAWASAKI Mule 4010 4x4 (2012)
KAWASAKI Mule 4010 Trans 4x4 (2009)
KAWASAKI Mule 4010 Trans 4x4 (2010)
KAWASAKI Mule 4010 Trans 4x4 (2011)
KAWASAKI Mule 4010 Trans 4x4 (2012)
KAWASAKI Mule 2510 Diesel (2001)
KAWASAKI Mule 2510 Diesel (2002)
KAWASAKI Mule 3010 Diesel 4x4 (2003)
KAWASAKI Mule 3010 Diesel 4x4 (2004)
KAWASAKI Mule 3010 Diesel 4x4 (2005)
KAWASAKI Mule 3010 Diesel 4x4 (2007)
KAWASAKI Mule 3010 Diesel EPS 4x4 (2008)
KAWASAKI Mule 4010 Diesel 4x4 (2010)
KAWASAKI Mule 4010 Diesel 4x4 (2011)
KAWASAKI Mule 4010 Diesel 4x4 (2012)
KAWASAKI Mule 4010 Diesel Trans 4x4 (2009)
KAWASAKI Mule 4010 Diesel Trans 4x4 (2010)
KAWASAKI Mule 4010 Diesel Trans 4x4 (2012)
KAWASAKI Teryx 750 (2008)
KAWASAKI Teryx 750 LE (2008)
KAWASAKI Teryx 750 (2009)
KAWASAKI Teryx 750 LE (2009)
KAWASAKI Teryx 750 (2010)
KAWASAKI Teryx 750 (2011)
KAWASAKI Teryx 750 (2012)
KAWASAKI Teryx 750 LE (2010)
KAWASAKI Teryx 750 LE (2011)
KAWASAKI Teryx 750 LE (2012)
KAWASAKI Teryx 750 Sport (2010)
KAWASAKI Prairie 300 4x4 (1999)
KAWASAKI Prairie 300 4x4 (2000)
KAWASAKI Prairie 300 4x4 (2001)
KAWASAKI Prairie 300 4x4 (2002)
KAWASAKI Prairie 300 2x4 (1999)
KAWASAKI Prairie 300 2x4 (2000)
KAWASAKI Prairie 300 2x4 (2001)
KAWASAKI Prairie 400 4x4 (1997)
KAWASAKI Prairie 400 2x4 (1998)
KAWASAKI Prairie 400 4x4 (1998)
KAWASAKI Prairie 400 4x4 (1999)
KAWASAKI Prairie 400 4x4 (2000)
KAWASAKI Prairie 400 4x4 (2001)
KAWASAKI Prairie 400 4x4 (2002)
KAWASAKI Prairie 400 2x4 (1999)
KAWASAKI Prairie 400 2x4 (2000)
KAWASAKI Teryx 750 (2013)
KAWASAKI Mule 4010 Diesel Trans 4x4 (2013)
KAWASAKI Mule 4010 Diesel 4x4 (2013)
KAWASAKI Mule 4010 Trans 4x4 (2013)
KAWASAKI Mule 4010 4x4 (2013)
KAWASAKI Mule 610 XC 4x4 (2013)
KAWASAKI Mule 610 4x4 (2013)
KAWASAKI Mule 610 4x4 (2014)
KAWASAKI Mule 610 XC 4x4 (2014)
KAWASAKI Mule 4010 4x4 (2014)
KAWASAKI Mule 4010 Trans 4x4 (2014)
KAWASAKI Mule 2510 4x4 (2000)
KAWASAKI Mule 2510 Diesel (2000)
KAWASAKI Prairie 400 2x4 (2001)
KAWASAKI Prairie 300 2x4 (2002)
KAWASAKI Prairie 400 2x4 (2002)
KAWASAKI Mule 610 4x4 (2005)
KAWASAKI Mule 3010 Diesel 4x4 (2006)
KAWASAKI Mule 4010 Diesel 4x4 (2009)
KAWASAKI Mule 610 4x4 (2015)
KAWASAKI Mule 610 XC 4x4 (2015)
KAWASAKI Mule 4010 4x4 (2015)
KAWASAKI Mule 4010 Trans 4x4 (2015)
KAWASAKI Mule 4010 Trans 4x4 (2016)
KAWASAKI Mule 4010 4x4 (2016)
KAWASAKI Mule 610 4x4 (2016)
KAWASAKI Mule SX (2017)
KAWASAKI Mule SX XC 4x4 (2017)
KAWASAKI Mule SX XC SE (2017)
KAWASAKI Mule 4010 4x4 (2017)
KAWASAKI Mule 4010 Trans 4x4 (2017)
KAWASAKI Mule SX 4x4 (2017)
KAWASAKI Mule SX SE FI 4x4 (2017)
KAWASAKI Mule SX 4x4 (2018)
KAWASAKI Mule SX XC 4x4 (2018)
KAWASAKI Mule SX XC SE (2018)
KAWASAKI Mule 4010 4x4 (2018)
KAWASAKI Mule 4010 Trans 4x4 (2018)
KAWASAKI Mule SX XC 4x4 (2019)
KAWASAKI Mule 4010 4x4 (2019)
KAWASAKI Mule 4010 Trans 4x4 (2019)
KAWASAKI Mule SX (2019)
KAWASAKI Mule SX XC SE (2019)
KAWASAKI Mule SX 4x4 (2020)
KAWASAKI Mule SX XC 4x4 (2020)
KAWASAKI Mule SX XC 4x4 LE (2020)
KAWASAKI Mule 4010 4x4 (2020)
KAWASAKI Mule 4010 Trans 4x4 (2020)
KAWASAKI Mule SX SE FI 4x4 (2020)
KAWASAKI Mule 4010 Diesel Trans 4x4 (2011)
KAWASAKI Mule 3010 Trans 4x4 (2008)
KAWASAKI Mule 610 4x4 (2008)
KAWASAKI Mule 3010 Diesel Trans 4x4 (2007)
KAWASAKI Mule 3010 Diesel Trans 4x4 (2008)
KAWASAKI Mule 3010 4x4 (2008)
KAWASAKI Mule 3010 Trans 4x4 (2005)
KAWASAKI Mule SX (2021)
KAWASAKI Mule SX 4x4 (2021)
KAWASAKI Mule SX SE FI 4x4 (2021)
KAWASAKI Mule SX XC 4x4 (2021)
KAWASAKI Mule SX XC 4x4 LE (2021)
KAWASAKI Mule 4010 4x4 (2021)
KAWASAKI Mule 4010 Trans 4x4 (2021)
KAWASAKI Mule SX (2020)
KAWASAKI Mule SX 4x4 (2022)
KAWASAKI Mule SX XC 4x4 (2022)
KAWASAKI Mule SX XC 4x4 LE (2022)
KAWASAKI Mule 4010 4x4 (2022)
KAWASAKI Mule 4010 Trans 4x4 (2022)
KAWASAKI Mule SX 4x4 (2023)
KAWASAKI Mule SX XC 4x4 (2023)
KAWASAKI Mule SX XC 4x4 LE (2023)
KAWASAKI Mule 4010 4x4 (2023)
KAWASAKI Mule 4010 Trans 4x4 (2023)
KAWASAKI Mule SX (2023)
KAWASAKI Mule SX (2018)
KAWASAKI Mule SX (2022)
KAWASAKI Mule SX 4x4 (2019)
KAWASAKI Mule SX XC 4x4 LE (2019)
KAWASAKI Mule SX 4x4 (2025)
KAWASAKI Mule 4010 4x4 (2025)
KAWASAKI Mule SX XC 4x4 LE (2025)
KAWASAKI Mule SX XC 4x4 (2025)
KAWASAKI Mule 4010 Trans 4x4 (2025)
KAWASAKI Mule 4010 4x4 (2024)
KAWASAKI Mule 4010 Trans 4x4 (2024)
KAWASAKI Mule SX (2024)
KAWASAKI Mule SX 4x4 (2024)
KAWASAKI Mule SX XC 4x4 (2024)
KAWASAKI Mule SX XC 4x4 LE (2024)
KAWASAKI Mule 4010 4x4 FE (2025)
KAWASAKI Mule 4010 Trans 4x4 FE (2025)
KAWASAKI Mule SX (2025)
KAWASAKI Mule 4010 Trans 4x4 FE (2024)
