Universal Joint

$38.69
  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

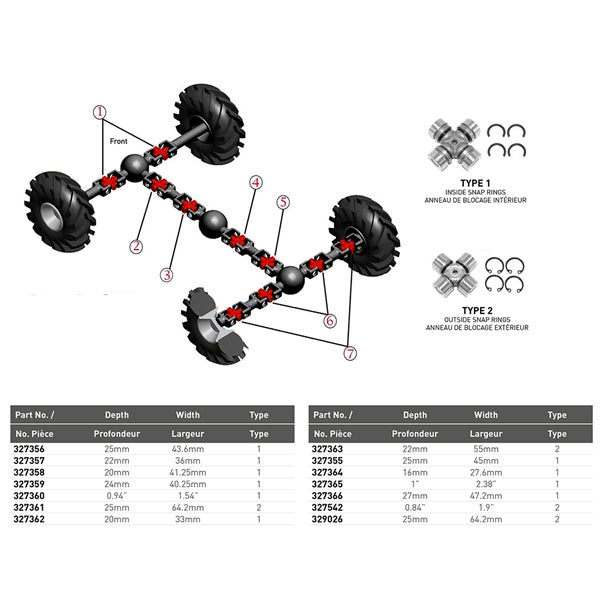

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.

    Fits:
    • KAWASAKI KFX700 (2004)
    • KAWASAKI Prairie 360 4x4 (2006)
    • KAWASAKI Prairie 360 4x4 (2007)
    • KAWASAKI Prairie 360 4x4 (2008)
    • KAWASAKI Prairie 360 4x4 (2009)
    • KAWASAKI Prairie 360 4x4 (2010)
    • KAWASAKI Prairie 360 4x4 (2011)
    • KAWASAKI Prairie 360 4x4 (2012)
    • KAWASAKI Prairie 360 4x4 (2003)
    • KAWASAKI Prairie 360 4x4 (2004)
    • KAWASAKI Prairie 360 2x4 (2005)
    • KAWASAKI Prairie 360 2x4 (2003)
    • KAWASAKI Prairie 360 2x4 (2004)
    • KAWASAKI Prairie 650 4x4 (2002)
    • KAWASAKI Prairie 650 4x4 (2003)
    • KAWASAKI Brute Force 650 4x4 (2006)
    • KAWASAKI Brute Force 650 4x4 (2007)
    • KAWASAKI Brute Force 650 4x4 (2008)
    • KAWASAKI Brute Force 650 4x4 (2009)
    • KAWASAKI Brute Force 650 4x4 (2010)
    • KAWASAKI Brute Force 650 4x4 (2011)
    • KAWASAKI Brute Force 650 4x4 (2012)
    • KAWASAKI Brute Force 650 4x4 (2005)
    • KAWASAKI Prairie 700 4x4 (2006)
    • KAWASAKI Prairie 700 4x4 (2004)
    • KAWASAKI Prairie 700 4x4 (2005)
    • KAWASAKI Prairie 700 SE 4x4 (2006)
    • KAWASAKI Brute Force 750 (2006)
    • KAWASAKI Brute Force 750 (2007)
    • KAWASAKI Brute Force 750 (2005)
    • KAWASAKI Brute Force 750 (2009)
    • KAWASAKI Brute Force 750 (2010)
    • KAWASAKI Brute Force 750 (2011)
    • KAWASAKI Brute Force 750 (2008)
    • KAWASAKI Brute Force 750 EPS (2012)
    • KAWASAKI Brute Force 750 SE EPS (2012)
    • SUZUKI LT-V700F Twin Peaks 700 4x4 (2004)
    • SUZUKI LT-V700F Twin Peaks 700 4x4 (2005)
    • KAWASAKI Brute Force 750 SE EPS (2013)
    • KAWASAKI Brute Force 750 EPS (2013)
    • KAWASAKI Brute Force 650 4x4 (2013)
    • KAWASAKI Prairie 360 4x4 (2013)
    • KAWASAKI Brute Force 750 EPS (2014)
    • KAWASAKI Brute Force 750 SE EPS (2014)
    • KAWASAKI KFX700 (2005)
    • KAWASAKI Prairie 360 4x4 (2005)
    • KAWASAKI KFX700 (2006)
    • KAWASAKI Prairie 360 2x4 (2006)
    • KAWASAKI KFX700 (2007)
    • KAWASAKI Prairie 360 2x4 (2007)
    • KAWASAKI KFX700 (2008)
    • KAWASAKI Prairie 360 2x4 (2008)
    • KAWASAKI KFX700 (2009)
    • KAWASAKI Prairie 360 2x4 (2009)
    • KAWASAKI Brute Force 750 (2012)
    • KAWASAKI Brute Force 750 EPS (2015)
    • KAWASAKI Brute Force 750 SE EPS (2015)
    • KAWASAKI Brute Force 750 SE EPS (2016)
    • KAWASAKI Brute Force 750 EPS (2016)
    • KAWASAKI Brute Force 750 (2016)
    • KAWASAKI Brute Force 750 EPS (2017)
    • KAWASAKI Brute Force 750 SE EPS (2017)
    • KAWASAKI Brute Force 750 (2017)
    • KAWASAKI Brute Force 750 (2015)
    • KAWASAKI Brute Force 750 EPS (2018)
    • KAWASAKI Brute Force 750 SE EPS (2018)
    • KAWASAKI Brute Force 750 (2018)
    • KAWASAKI Brute Force 750 EPS (2019)
    • KAWASAKI Brute Force 750 SE EPS (2019)
    • KAWASAKI Brute Force 750 (2019)
    • KAWASAKI Brute Force 750 (2020)
    • KAWASAKI Brute Force 750 EPS (2020)
    • KAWASAKI Brute Force 750 (2013)
    • KAWASAKI Brute Force 750 (2014)
    • KAWASAKI Brute Force 750 (2021)
    • KAWASAKI Brute Force 750 EPS (2021)
    • KAWASAKI Brute Force 750 EPS (2022)
    • KAWASAKI Brute Force 750 EPS (2023)
    • KAWASAKI Brute Force 750 EPS (2024)
    • KAWASAKI Brute Force 750 EPS (2025)
