Universal Joint

$56.36
  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

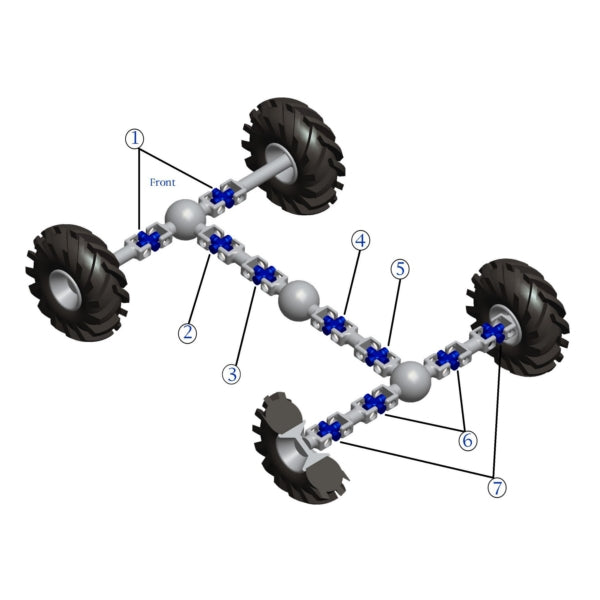

Notes for utility Models:
  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.

    Fits:
    • KAWASAKI Teryx4 750 (2012)
    • KAWASAKI Teryx4 750 EPS (2012)
    • KAWASAKI Teryx4 750 EPS (2013)
    • KAWASAKI Teryx4 750 (2013)
    • KAWASAKI Teryx 800 EPS (2014)
    • KAWASAKI Teryx 800 LE EPS (2014)
    • KAWASAKI Teryx4 800 EPS (2014)
    • KAWASAKI Teryx4 800 LE EPS (2014)
    • KAWASAKI Teryx 800 EPS (2015)
    • KAWASAKI Teryx 800 LE EPS (2015)
    • KAWASAKI Teryx4 800 EPS (2015)
    • KAWASAKI Teryx4 800 LE EPS (2015)
    • KAWASAKI Teryx4 800 LE EPS (2016)
    • KAWASAKI Teryx4 800 EPS (2016)
    • KAWASAKI Teryx 800 LE EPS (2016)
    • KAWASAKI Teryx 800 EPS (2016)
    • KAWASAKI Teryx 800 EPS (2017)
    • KAWASAKI Teryx 800 LE EPS (2017)
    • KAWASAKI Teryx4 800 EPS (2017)
    • KAWASAKI Teryx4 800 LE EPS (2017)
    • KAWASAKI Teryx 800 EPS (2018)
    • KAWASAKI Teryx 800 LE EPS (2018)
    • KAWASAKI Teryx4 800 EPS (2018)
    • KAWASAKI Teryx4 800 LE EPS (2018)
    • KAWASAKI Mule Pro-MX EPS (2019)
    • KAWASAKI Teryx 800 EPS (2019)
    • KAWASAKI Teryx 800 LE EPS (2019)
    • KAWASAKI Teryx4 800 EPS (2019)
    • KAWASAKI Teryx4 800 LE EPS (2019)
    • KAWASAKI Mule Pro-MX EPS (2020)
    • KAWASAKI Teryx 800 EPS (2020)
    • KAWASAKI Teryx 800 LE EPS (2020)
    • KAWASAKI Teryx4 800 EPS (2020)
    • KAWASAKI Teryx4 800 LE EPS (2020)
    • KAWASAKI Mule Pro-MX EPS (2021)
    • KAWASAKI Teryx 800 EPS (2021)
    • KAWASAKI Teryx 800 LE EPS (2021)
    • KAWASAKI Teryx4 800 EPS (2021)
    • KAWASAKI Teryx4 800 LE EPS (2021)
    • KAWASAKI Teryx S 800 LE (2021)
    • KAWASAKI Teryx4 S 800 EPS (US) (2021)
    • KAWASAKI Mule Pro-MX EPS (2022)
    • KAWASAKI Teryx 800 EPS (2022)
    • KAWASAKI Teryx S 800 LE (2022)
    • KAWASAKI Teryx4 800 EPS (2022)
    • KAWASAKI KRT800JNF Teryx4 (US) (2022)
    • KAWASAKI Mule Pro-MX EPS (2023)
    • KAWASAKI Teryx 800 EPS (2023)
    • KAWASAKI Teryx S 800 LE (2023)
    • KAWASAKI Teryx4 800 EPS (2023)
    • KAWASAKI Teryx4 S 800 LE EPS (2023)
    • KAWASAKI Teryx4 S 800 SE EPS (2023)
    • KAWASAKI Mule Pro-MX EPS (2024)
    • KAWASAKI Mule Pro-MX EPS SE (2024)
    • KAWASAKI Teryx 800 EPS (2024)
    • KAWASAKI Teryx S 800 LE (2024)
    • KAWASAKI Teryx4 S 800 SE EPS (2024)
    • KAWASAKI Teryx4 S 800 LE EPS (2024)
    • KAWASAKI Mule Pro-MX EPS (2025)
    • KAWASAKI Teryx S 800 LE (2025)
    • KAWASAKI Teryx4 S 800 LE EPS (2025)
    • KAWASAKI Teryx4 S 800 SE EPS (2025)
    • KAWASAKI Teryx4 800 EPS (2025)
    • KAWASAKI Mule Pro-MX (2025)
    • KAWASAKI Teryx S 800 (2025)
    • KAWASAKI Teryx S 800 (2024)
