Universal Joint

$38.69
  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

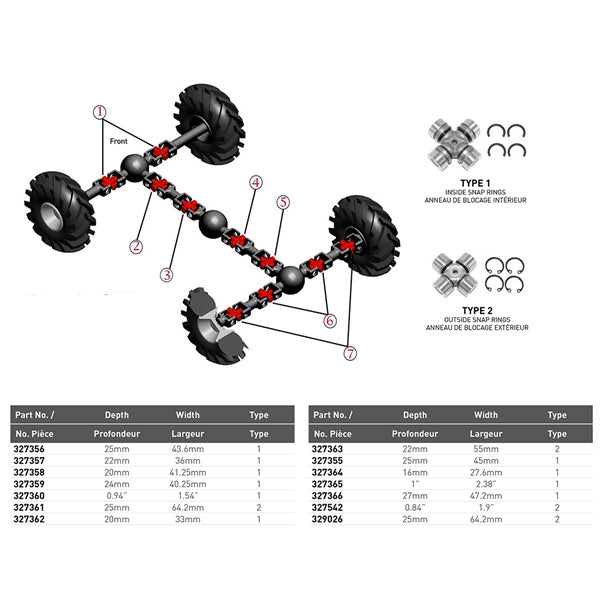

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.

    Fits:
    • POLARIS Sportsman 500 4x4 (1997)
    • POLARIS Diesel 455 4x4 (1999)
    • POLARIS Xplorer 500 4X4 (1997)
    • POLARIS Sportsman 335 4x4 (2000)
    • POLARIS Sportsman 335 4x4 (1999)
    • POLARIS Worker 335 (1999)
    • POLARIS Ranger 500 4x4 (2004)
    • POLARIS Ranger 500 6x6 (2004)
    • POLARIS Sportsman 500 4x4 (1998)
    • POLARIS Sportsman 500 4x4 (1996)
