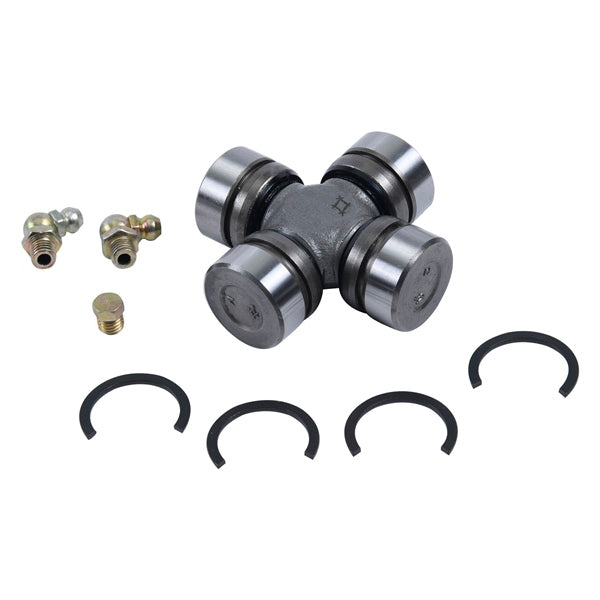

Universal Joint

$57.66
  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:
  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.

    Fits:
    • POLARIS RZR XP 4 Turbo EPS (2020)
    • POLARIS RZR XP Turbo EPS (2020)
    • CAN-AM (BRP) Maverick R (2024)
    • CAN-AM (BRP) Maverick R X (2024)
    • CAN-AM (BRP) Maverick R X RS (2024)
    • Segway Fugleman UT10 (2023)
    • CAN-AM (BRP) Maverick R (2025)
    • CAN-AM (BRP) Maverick R X (2025)
    • CAN-AM (BRP) Maverick R X RS (2025)
    • CAN-AM (BRP) Maverick Max R (2025)
    See full details
